If you want to increase efficiency of your factory’s operation dramatically, this type is the one we offer. Using Roll to Roll
transfer printing system, productivity will increase 4 times compared to non-roll transfer.

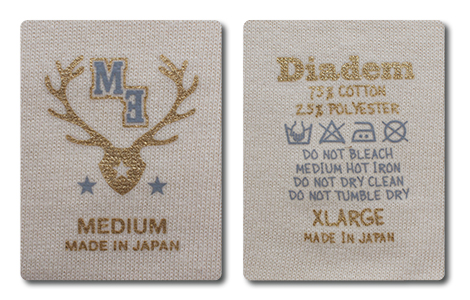

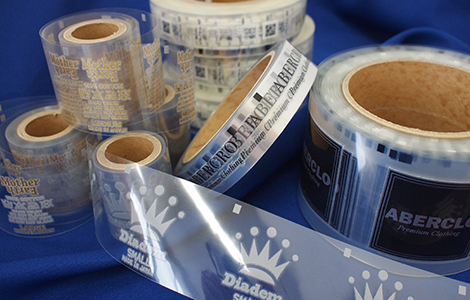

Once installing the roll formed Tagless Labels into R2R press machine, heat press, peeling off and setting the next heat transfer
can be done only by pressing a button. The next heat transfer can be placed by sensor without misalignment.
Procedure for Roll to Roll transfer is simple and easy even for unskilled operator.
Roll to Roll transfers demonstrates its capacity to utmost when heat pressing the same labels for large quantity.
Descriptions
Product Type
Custom Screen Printed Heat Transfers in Roll form
Advantages
Great stretching capacity, High durability, High washability
Material
Urethane resin with water color pigment
Usage
Dark and Light colored fabrics
Cotton / Cotton & Poly / Polyester
Base of Labels
Clear film
Colors
up to 5 colors (except neon colors)
Artwork Size
up to 3.75”×3.75” or as required (according to your press machine)
Minimum order quantity
depending on the size of artwork
Peel
Hot
Packaging
500～1,000 pieces per Roll
Quality
Certified by Oeko-Tex Standard 100.
Lead Time
Sample order 7 business days
Volume order 10-14 business days
Artwork Submission Guideline
Applications
Adobe Illustrator CS5 or lower
Format: ai., eps., pdf.
Color mode: CMYK
Font: Convert all font to OUTLINE
Printable Size
up to 3.75”×3.75” or as required (according to your press machine)
Line Width
1 point or 0.14” at least
Opening Area Width
1 point or 0.14” at least (between lines)
Submit
Send your artwork at actual size, Upload from Upload page.
Color Instruction
CMYK or Pantone
Please note that color cannot match exactly to the request due to the characteristic of ink and any conditions
added to transfers during the production process, but we will match approximate color of the request.
Proof
To prevent misprocessing your artwork due to garbled data, save your artwork file as jpg. or pdf. and send it to us with your artwork in original format.
Press Instruction
Press machine
Roll to Roll heat transfer press machine with film sensor
Temperature
284F～302F (140℃～150℃)
Time
4-5 seconds
Pressure
Mid pressure 36PSI (Adjust depending on the material)
The press machine setting (temp., pressure and press time) may vary depending on the type of the machine
which you use.
We strongly recommend to test-press to adjust the setting.

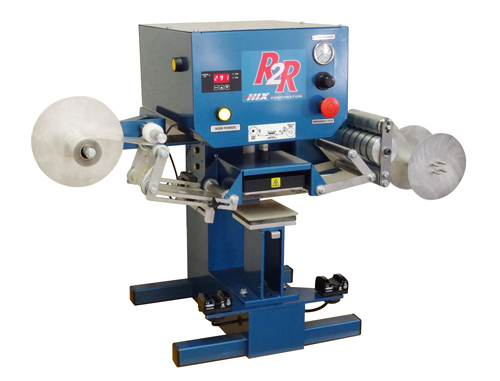

HIX R2R Tagless Press available for film sensor option
Recommended Point
Great stretching capacity
