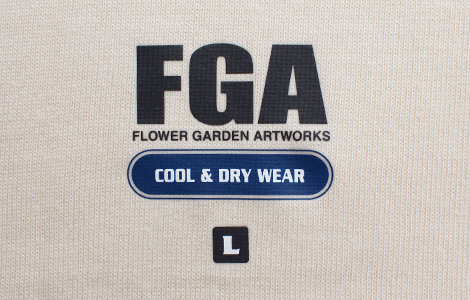

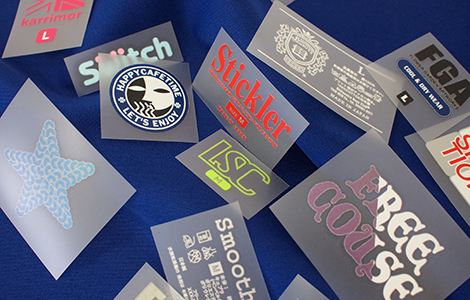

Tagless Labels in individually cut. This type is suitable for small quantity and multi-kind & small-lot orders.
We use see-through clear film for the base of labels, which makes placing labels on garment easier than paper base.
Select from 2 options of Hot peel or Cold peel.
Descriptions
Product Type
Custom Screen Printed Heat Transfers in individually cut
Advantages
Great stretching capacity, High durability, High washability
Material
Urethane resin with water color pigment
Usage
Dark and Light colored fabrics
Cotton / Cotton & Poly / Polyester
Base of Labels
Clear film
Colors
up to 5 colors (except neon colors)
Artwork Size
as required
Minimum order quantity
1,000 pieces
Peel
Hot or Cold
Packaging
100～200 pieces per bag
Quality
Certified by Oeko-Tex Standard 100.
Lead Time
Sample order 7 business days
Volume order 10-14 business days
Artwork Submission Guideline
Applications
Adobe Illustrator CS5 or older
Format: ai., eps., pdf.
Color mode: CMYK
Font: Convert all font to OUTLINE
Printable Size
as required
Line Width
1 point or 0.14” at least
Opening Area Width
1 point or 0.14” at least (between lines)
Submit
Send your artwork at actual size, Upload from Upload page.
Color Instruction
CMYK or Pantone
Please note that color cannot match exactly to the request due to the characteristic of ink and any conditions
added to transfers during the production process, but we will match approximate color of the request.
Proof
To prevent misprocessing your artwork due to garbled data, save your artwork file as jpg. or pdf. and send it to us with your artwork in original format.
Press Instruction
Press machine
Clamp-shell type heat transfer press machine
For Hot peel
Temperature
284F～302F (140℃～150℃)
Time
5 seconds
Pressure
Mid pressure 36PSI
(Adjust depending on the material)
* Remove the base film immediately.
For Cold peel
Temperature
284F～302F (140℃～150℃)
Time
10 seconds
Pressure
Mid pressure 36PSI
(Adjust depending on the material)
* After completely cool off, remove the base film.
The press machine setting (temp., pressure and press time) may vary depending on the type of the machine
which you use.
We strongly recommend to test-press to adjust the setting.
HIX Corporation www.hixcorp.com

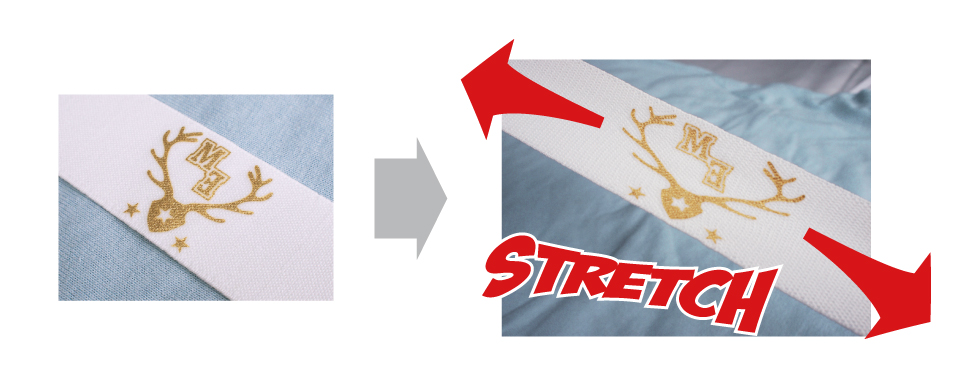

Recommended Point
Great stretching capacity
